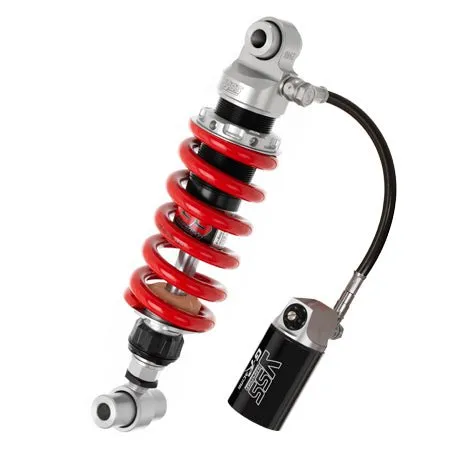

Yamaha YZF R3 2015-2023 Yss shock absorber

MX366-280TRCL-18-858

Technical Info
YEAR:2015-2023
PRODUCT GROUP: Topline
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE: External Reservoir On Hose Gas Shock
LENGTH:275-285 (MM.)
TOP:12×35 (MM.)
BOTTOM:12×60 (MM.)
SPRING:46-150-140 (MM.)
PISTON SIZE:36 (MM.)
SHAFT SIZE:16 (MM.)

THREAD SPRING PRELOAD

Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers, user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position.

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

COMPRESSION ADJUSTABLE

Adjustable Compression. Compression Adjuster is the controller for the compression stage of the shock absorbers and springs to move fast or slow. Adjustable step 30.

LENGTH ADJUSTABLE
Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths /- 5 mm.
