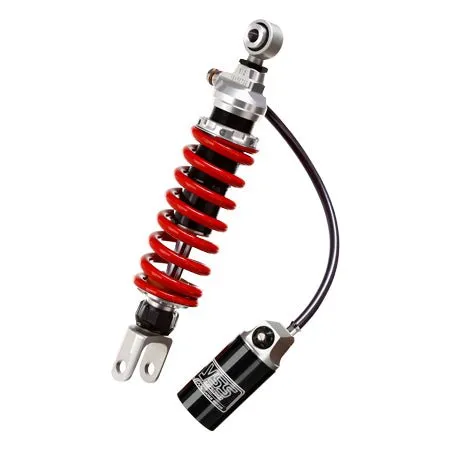

Technical Specifications for YSS Topline Rear Mono Shock (2013-2016):

• Year: 2013-2016
• Product Group: Topline
• Shock Type: Rear Mono Shock
• Product Type: External Reservoir On Hose Gas Shock
• ABE: Not specified
• Length: 315-325 mm
• Top Mount: 12x30 mm
• Bottom Mount: F.32x12 mm
• Spring Dimensions: 56-85-150 mm
• Piston Size: 45 mm
• Shaft Size: 16 mm

Features:

• Compression Adjustable:

  • Adjustable compression for controlling the compression stage of shock absorbers.
  • Compression adjuster with 30 adjustable steps.

• Thread Spring Preload:

  • Allows fine-tuning of the spring using a threaded spring preload or adjustable spring screw.
  • User-adjustable to achieve the desired preload, and a bolt secures the ring in place.

• Rebound Adjustable:

  • Controls the recovery of the shock absorber.
  • Features a volume control knob, needle shaft, Free Bleed oil through hole, and an adjustable time adjustment dial for customized rebound.

• Length Adjustable:

  • Adjustable length for increasing the shock absorber's length.
  • Two types of adjustments: upgrade to 10 mm or adjustable lengths /- 5 mm.
