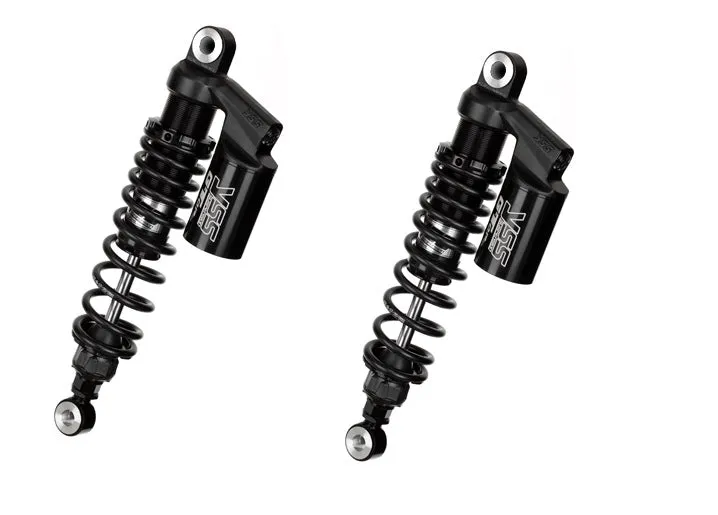

Technical Specifications - Black Edition Topline Rear Twin Shock (2008-2016)

Product Overview:

• Collection: Black Edition
• Year: 2008-2016
• Product Group: Topline
• Shock Type: Rear Twin Shock
• Product Type: Top External Reservoir Piggy Back Gas Shock
• ABE: Not Applicable

Dimensions:

• Length: 285-295 mm
• Top Diameter: 12.7x32 mm
• Bottom Diameter: 12.7x32 mm
• Spring Dimensions: 46-25-35-160 mm
• Piston Size: 36 mm
• Shaft Size: 12 mm

Adjustability Features:

1. Compression Adjustable:

   • Description: Enables control over the compression stage of shock absorbers and springs, allowing for fast or slow movements.
   • Adjustment: Step-wise adjustability with 30 settings.

2. Thread Spring Preload:

   • Description: Facilitates fine-tuning of spring tension through a threaded cylindrical shock absorber design.
   • Adjustment: Users can turn the preload using an adjustable spring screw; a provided bolt secures the ring in position.

3. Rebound Adjustable:

   • Description: Controls the recovery speed of the shock absorber, offering customization based on driver preferences.
   • Components: Volume control knob, needle shaft, Free Bleed oil through hole.
   • Adjustment: Time adjustment dial for precise customization.

4. Length Adjustable:

   • Description: Provides flexibility by allowing an increase in the length of the shock absorber.
   • Options: Two types - upgradable to 10 mm or adjustable within a range of /- 5 mm.
